Parker Hiross PoleStar Smart Series Refrigeration Air Dryers
Parker Hiross PoleStar Smart refrigeration dryers have been designed for the efficient removal of water from compressed air. Equipped with the patented SmartSave energy-saving feature PoleStar Smart refrigeration dryers continually and precisely modulates its mode of operation to meet prevailing operating conditions, resulting in accurate dew-point monitoring with corresponding aligned power consumption.
High efficiency, energy saving, refrigeration dryers that provide low pressure drops resulting in lower operational costs. 50 bar high pressure and 60 Hz models are available in the range.
Call us TODAY at 727-835-0649 or
Toll Free at 800-761-4298
Get A Free Quote!
PSH030, PSH045, PSH065, PSH090, PSH120, PSH160, PSH200, PSH230, PSH290, PSH380, PSH460, PSH630, PSH800, PSH1000, PSH1200
Experience the indirect cost savings of the PoleStar Smart, reducing the “hidden costs” of pressure drop are maximised by the use of a patented “all-in-one” aluminium heat-exchanger-SmartPack. Here the provision of large open channels and no-interconnecting pipe-work enables the free, un-interrupted passage of air through the dryer, resulting in pressure drops second to none.
Features of Parker Hiross PoleStar Smart Series Air Dryers:
• Direct-expansion type refrigeration system
• Volume flows up to 21600 m³/h @ 7 barg (PoleStar Smart) or 7200 m³/h @ 40 barg (PoleStar Smart HP)
• Energy saving feature
• All models supplied with refrigerant R407C
• Suitable for all compressed air applications
• Suitable for all compressor types, including variable flow
• The most energy efficient compressed air fridge dryer
• Low pressure drops for lower operational costs
• Cost of ownership reduced
• Significantly contributes to the indirect reduction of CO2 into the environment
Sizing and Model Selection
To ensure quoted air purity performance is met, a compressed air dryer must be sized correctly for minimum operating pressure, maximum inlet temperature and maximum inlet flow rate using the correction factors found in the Product Information Sheet.
For more information or a detailed discussion about your specific requirements please contact us at 727-835-0649 or Toll Free at 800-761-4298.

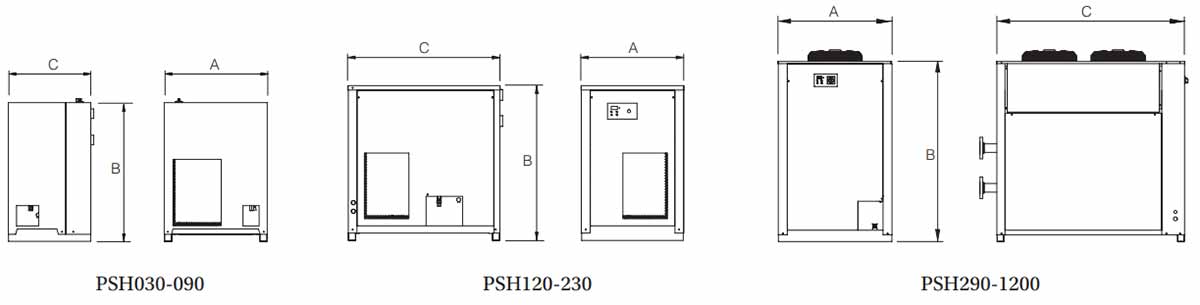

Click for Larger View
*Scroll to the right to see entire chart on mobile devices. *Twin models supplied with master controller, electronic integral drains, manifolds, manual valves and pre-filter with automatic drain.
Click for Larger View
*Scroll to the right to see entire chart on mobile devices.
